Options & Specs

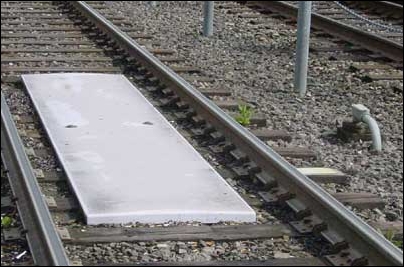

15’ unit in service, Portland Oregon
Tri-Met Light Rail
Tri-Met Light Rail
- Standard units are 3’ X 6’, 2’ X 15’, or 3’ X 15’, other sizes available.
- We can supply 3’ X 6’ Inductive Loops.
- Constructed of wood and fiberglass to withstand the damage and weather.
- Total weight of the 3 X 15 foot unit is under 200 lbs.

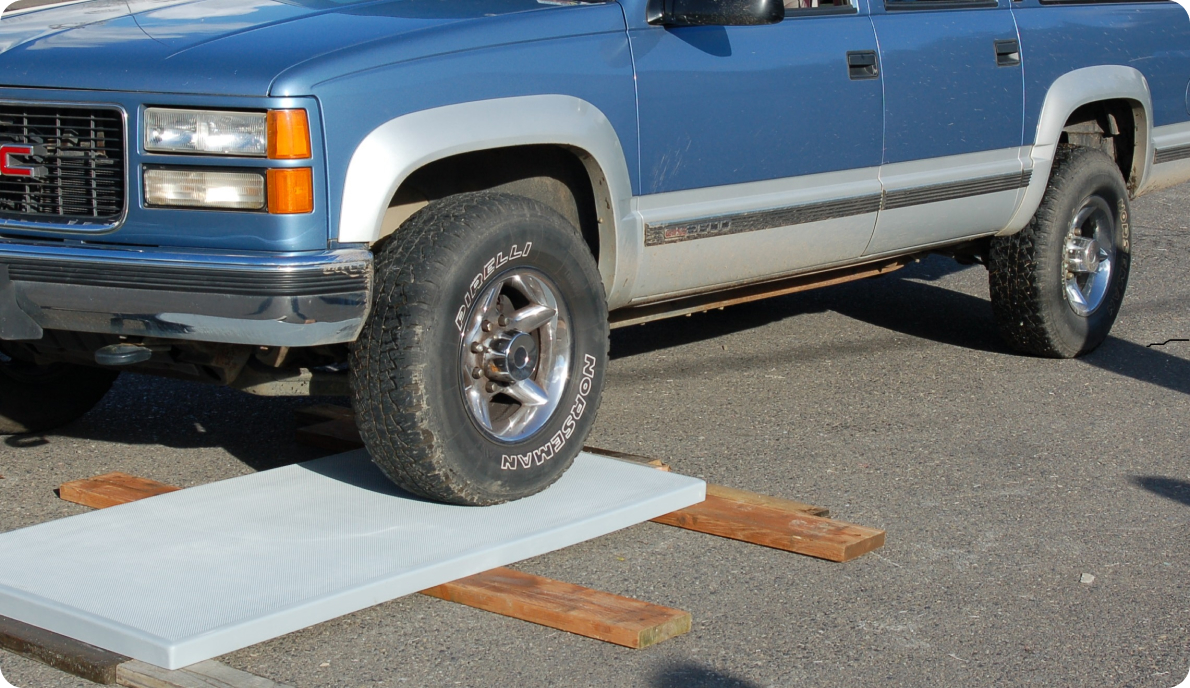

- Units are designed to hold over 1000 lbs without damage to the loop.
- The top of the unit is molded with an aggressive non-skid surface.

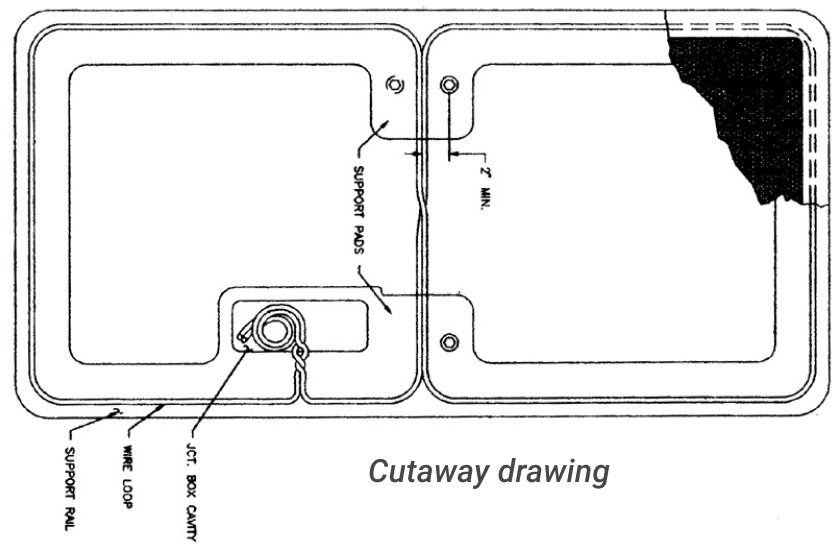

- A junction box cavity is molded into the bottom to accommodate filter V or other termination items.
- Various sizes of jacketed wire with leads up to 25' for termination.
- Fastens down with 2, 5/8” lag bolts
